karamba_comparision

klein_bottle_trail.json (gravity scale = 1)

conmech results

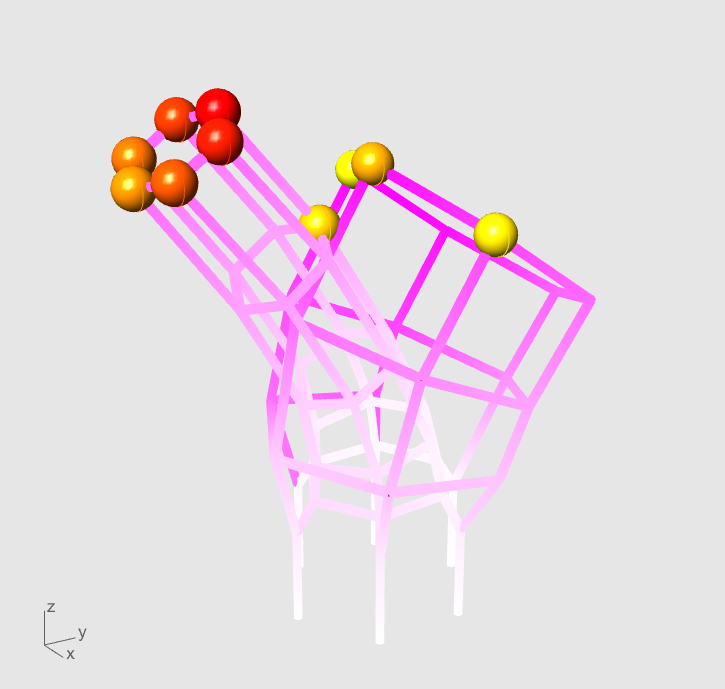

node ordering metric: max_coordinate

../_images/conmech_max_coordinate.png

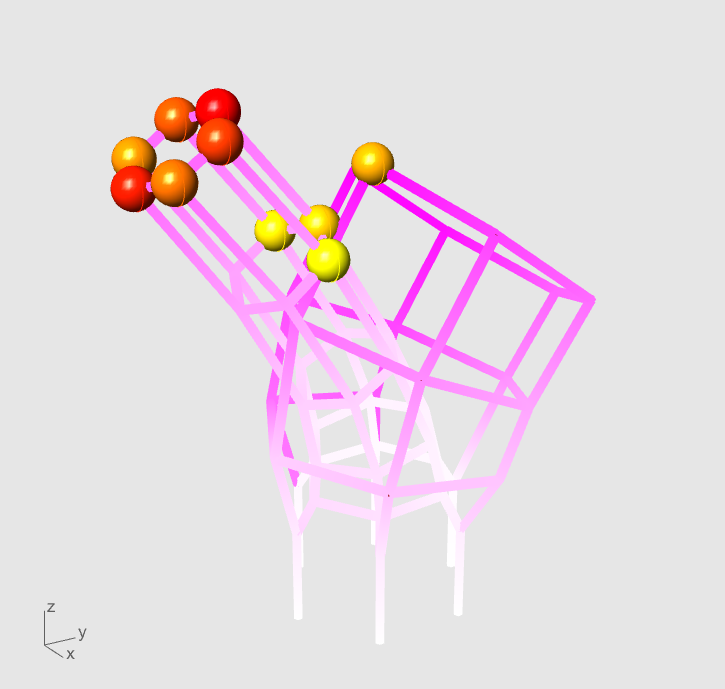

node ordering metric: max translational norm

../_images/conmech_max_norm.png

karamba results

conmech lumped load				Karamba gravity
max norm		max coordinate		max norm		max coordinate
karamba	conmech	karamba	conmech	karamba	conmech	karamba	conmech
0.000035	0.00352	0.000025	0.003102	0.000034	0.00352	0.000025	0.003102

conmech lumped load

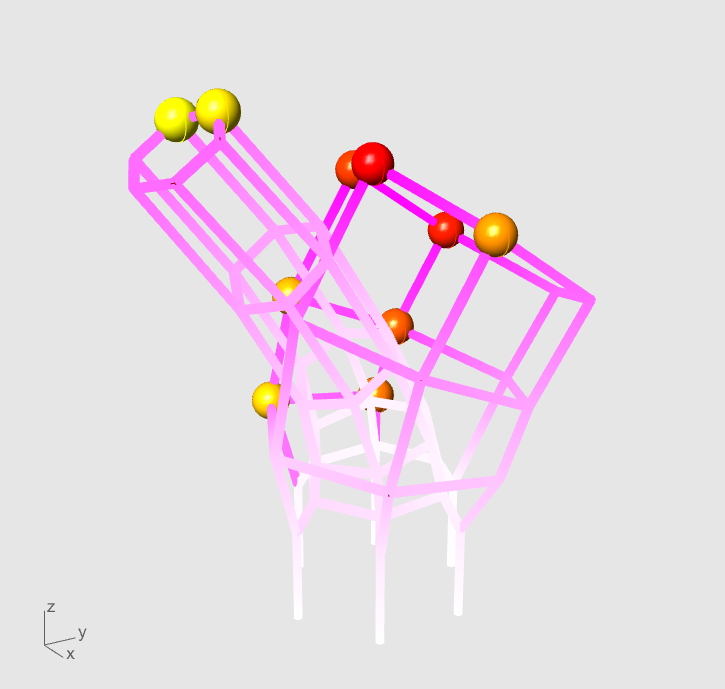

node ordering metric: max_coordinate

../_images/karamba_conmech_lumped_load_max_coordinate.png

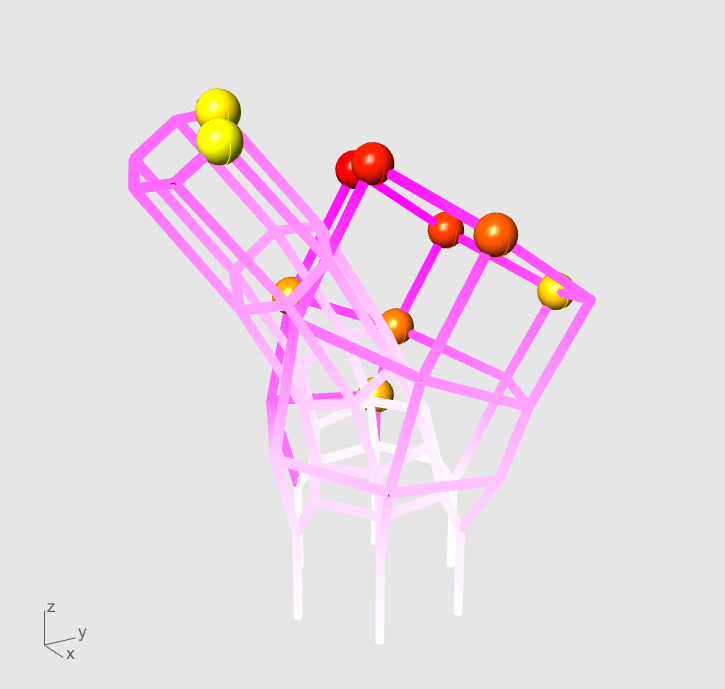

node ordering metric: max translational norm

../_images/karamba_conmech_lumped_load_max_norm.png

Applying karamba gravity

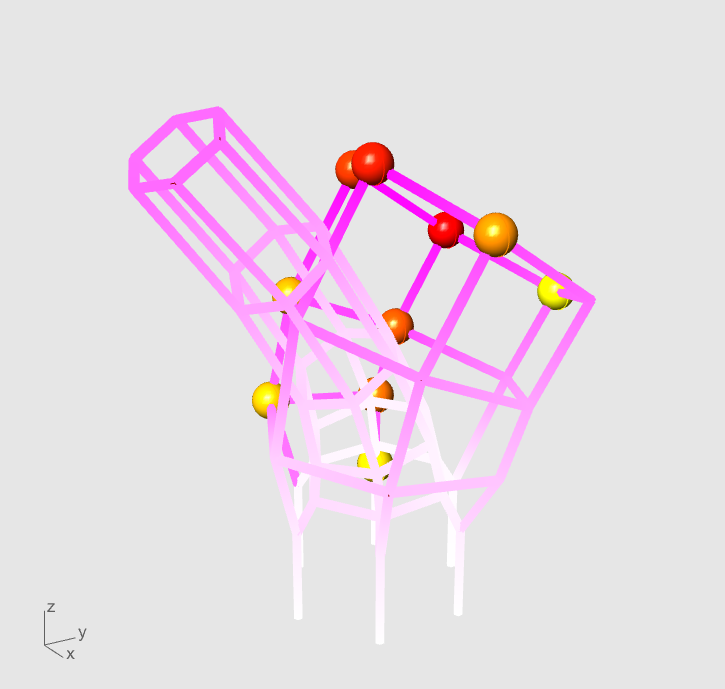

node ordering metric: max_coordinate

../_images/karamba_karamba_gravity_max_coordinate.png

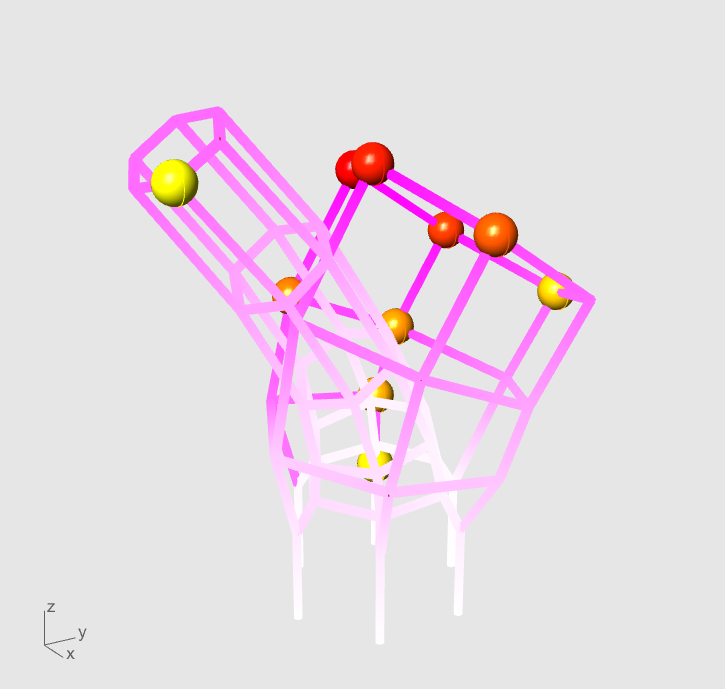

node ordering metric: max translational norm

../_images/karamba_karamba_gravity_max_norm.png
